Seurat is an R toolkit widely used for single-cell genomics and spatial transcriptomics, developed and maintained by the Satija Lab at New York Genome Center. In this section, we will see the steps to integrate KODAMA into the Seurat pipeline.
Loading libraries
First, we need to load the required libraries for this analysis. Make sure you have the following packages installed.
library(Seurat)
library(SeuratData)
library(KODAMA)
library(KODAMAextra)Dataset
The data used are sagittal sections of the mouse brain generated using Visium v1 technology saved in the Seurat library. For specific details on loading and using the dataset, please take a look at the documentation by typing ?stxBrain in your R environment. Install and load the anterior region of the mouse brain dataset.
#InstallData("stxBrain")
brain <- LoadData("stxBrain", type = "anterior1")Data processing
We will preprocess the data using Seurat’s SCTransform method and perform PCA:
brain <- SCTransform(brain, assay = "Spatial", verbose = FALSE)
brain <- RunPCA(brain, assay = "SCT", verbose = FALSE)Run and Visualize KODAMA
Apply KODAMA to reduce dimensionality and visualize the results:
brain <- RunKODAMAmatrix(brain, reduction = "pca")Calculating Network
Calculating Network spatial
socket cluster with 1 nodes on host 'localhost'
================================================================================
Finished parallel computation
[1] "Calculation of dissimilarity matrix..."
================================================================================brain <- RunKODAMAvisualization(brain)Clustering
Apply clustering on the KODAMA plot.
brain <- FindNeighbors(brain, reduction = "KODAMA", dims = 1:2)
brain <- FindClusters(brain, verbose = FALSE, graph.name="RNA_snn",resolution = 0.2)Visualize the KODAMA results with DimPlot and SpatialDimPlot:

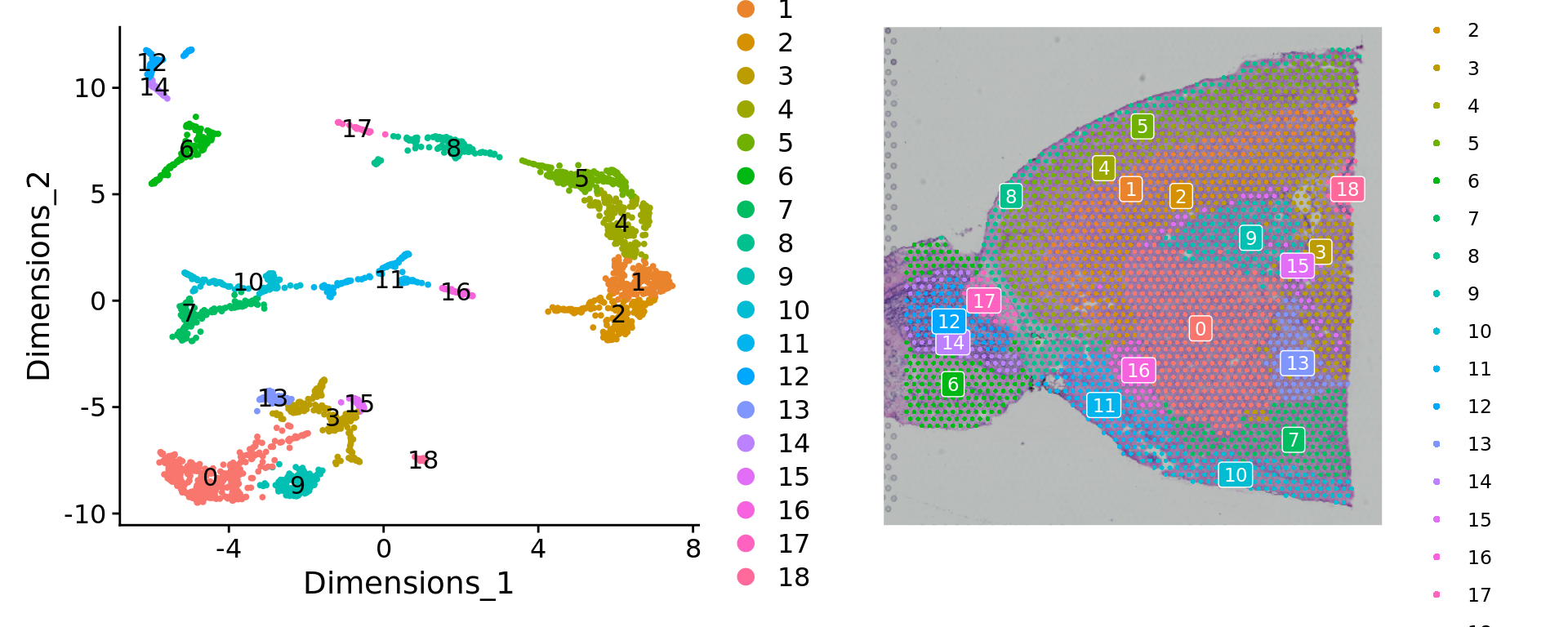

p1 <- DimPlot(brain, reduction = "KODAMA", label = TRUE)
p2 <- SpatialDimPlot(brain, label = TRUE, label.size = 3)
p1 + p2
| Version | Author | Date |
|---|---|---|
| 6f7daac | Stefano Cacciatore | 2024-07-19 |
sessionInfo()R version 4.4.3 (2025-02-28)
Platform: x86_64-pc-linux-gnu
Running under: Ubuntu 20.04.6 LTS
Matrix products: default
BLAS: /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.9.0
LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.9.0
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
time zone: Etc/UTC
tzcode source: system (glibc)
attached base packages:
[1] parallel stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] KODAMAextra_1.2 e1071_1.7-16
[3] doParallel_1.0.17 iterators_1.0.14
[5] foreach_1.5.2 KODAMA_3.0
[7] Matrix_1.7-3 umap_0.2.10.0
[9] Rtsne_0.17 minerva_1.5.10
[11] stxBrain.SeuratData_0.1.2 SeuratData_0.2.2.9002
[13] Seurat_5.2.1 SeuratObject_5.0.2
[15] sp_2.2-0 workflowr_1.7.1
loaded via a namespace (and not attached):
[1] RcppAnnoy_0.0.22 splines_4.4.3
[3] later_1.4.1 tibble_3.2.1
[5] polyclip_1.10-7 fastDummies_1.7.5
[7] lifecycle_1.0.4 tcltk_4.4.3
[9] rprojroot_2.0.4 Rnanoflann_0.0.3
[11] globals_0.16.3 processx_3.8.6
[13] lattice_0.22-7 MASS_7.3-65
[15] magrittr_2.0.3 plotly_4.10.4
[17] sass_0.4.9 rmarkdown_2.29
[19] jquerylib_0.1.4 yaml_2.3.10
[21] httpuv_1.6.15 glmGamPoi_1.16.0
[23] sctransform_0.4.1 spam_2.11-1
[25] askpass_1.2.1 spatstat.sparse_3.1-0
[27] reticulate_1.42.0 cowplot_1.1.3
[29] pbapply_1.7-2 RColorBrewer_1.1-3
[31] abind_1.4-8 zlibbioc_1.50.0
[33] GenomicRanges_1.56.2 purrr_1.0.4
[35] BiocGenerics_0.50.0 rappdirs_0.3.3
[37] misc3d_0.9-1 git2r_0.33.0
[39] GenomeInfoDbData_1.2.12 IRanges_2.38.1
[41] S4Vectors_0.42.1 ggrepel_0.9.6
[43] irlba_2.3.5.1 listenv_0.9.1
[45] spatstat.utils_3.1-3 goftest_1.2-3
[47] RSpectra_0.16-2 spatstat.random_3.3-3
[49] fitdistrplus_1.2-2 parallelly_1.43.0
[51] DelayedMatrixStats_1.26.0 codetools_0.2-20
[53] DelayedArray_0.30.1 tidyselect_1.2.1
[55] UCSC.utils_1.0.0 farver_2.1.2
[57] matrixStats_1.5.0 stats4_4.4.3
[59] spatstat.explore_3.4-2 jsonlite_2.0.0
[61] progressr_0.15.1 ggridges_0.5.6
[63] survival_3.8-3 tools_4.4.3
[65] snow_0.4-4 ica_1.0-3
[67] Rcpp_1.0.14 glue_1.8.0
[69] gridExtra_2.3 SparseArray_1.4.8
[71] xfun_0.51 MatrixGenerics_1.16.0
[73] GenomeInfoDb_1.40.1 dplyr_1.1.4
[75] withr_3.0.2 fastmap_1.2.0
[77] openssl_2.3.2 callr_3.7.6
[79] digest_0.6.37 R6_2.6.1
[81] mime_0.13 colorspace_2.1-1
[83] scattermore_1.2 tensor_1.5
[85] spatstat.data_3.1-6 tidyr_1.3.1
[87] generics_0.1.3 data.table_1.17.0
[89] class_7.3-23 httr_1.4.7
[91] htmlwidgets_1.6.4 S4Arrays_1.4.1
[93] whisker_0.4.1 uwot_0.2.3
[95] pkgconfig_2.0.3 gtable_0.3.6
[97] lmtest_0.9-40 XVector_0.44.0
[99] htmltools_0.5.8.1 dotCall64_1.2
[101] scales_1.3.0 Biobase_2.64.0
[103] png_0.1-8 doSNOW_1.0.20
[105] spatstat.univar_3.1-2 knitr_1.50
[107] rstudioapi_0.17.1 reshape2_1.4.4
[109] nlme_3.1-168 proxy_0.4-27
[111] cachem_1.1.0 zoo_1.8-13
[113] stringr_1.5.1 KernSmooth_2.23-26
[115] miniUI_0.1.1.1 pillar_1.10.1
[117] grid_4.4.3 vctrs_0.6.5
[119] RANN_2.6.2 promises_1.3.2
[121] xtable_1.8-4 cluster_2.1.8.1
[123] evaluate_1.0.3 cli_3.6.4
[125] compiler_4.4.3 rlang_1.1.5
[127] crayon_1.5.3 future.apply_1.11.3
[129] labeling_0.4.3 ps_1.9.0
[131] getPass_0.2-4 plyr_1.8.9
[133] fs_1.6.5 stringi_1.8.7
[135] viridisLite_0.4.2 deldir_2.0-4
[137] munsell_0.5.1 lazyeval_0.2.2
[139] spatstat.geom_3.3-6 RcppHNSW_0.6.0
[141] patchwork_1.3.0 sparseMatrixStats_1.16.0
[143] future_1.34.0 ggplot2_3.5.1
[145] shiny_1.10.0 SummarizedExperiment_1.34.0
[147] ROCR_1.0-11 igraph_2.1.4
[149] bslib_0.9.0
