Visualisation

Data visualisation helps to tell stories about the data in a form that is appealing and easy to understand and draw conclusions. It is said that “a picture is worth a thousand words”

R is equipped with powerful predefined visualisation features() and more add-on features used to create complex but aesthetically pleasing graphs

Learning Objectives:

Understand and Apply Scatter Plots
Analyze and Interpret Box Plots
Create and Customize Heatmaps
Conduct and Visualize Survival Analysis

1. Scatter Plots

Scatter plots are useful for visualizing the relationship between two continuous variables.

library(ggplot2)
library(dplyr)

head(starwars)

# A tibble: 6 × 14
  name      height  mass hair_color skin_color eye_color birth_year sex   gender
  <chr>      <int> <dbl> <chr>      <chr>      <chr>          <dbl> <chr> <chr>
1 Luke Sky…    172    77 blond      fair       blue            19   male  mascu…
2 C-3PO        167    75 <NA>       gold       yellow         112   none  mascu…
3 R2-D2         96    32 <NA>       white, bl… red             33   none  mascu…
4 Darth Va…    202   136 none       white      yellow          41.9 male  mascu…
5 Leia Org…    150    49 brown      light      brown           19   fema… femin…
6 Owen Lars    178   120 brown, gr… light      blue            52   male  mascu…
# ℹ 5 more variables: homeworld <chr>, species <chr>, films <list>,
#   vehicles <list>, starships <list>

#summary(starwars)

# cleaning the dataset to remove NA values for height & mass
starwars_QC <- starwars %>%
  filter(!is.na(height) & !is.na(mass))

# filtering the dataset to remove outliers
starwars_QC1 <- starwars_QC %>%
  filter(height < 300 & mass < 500)

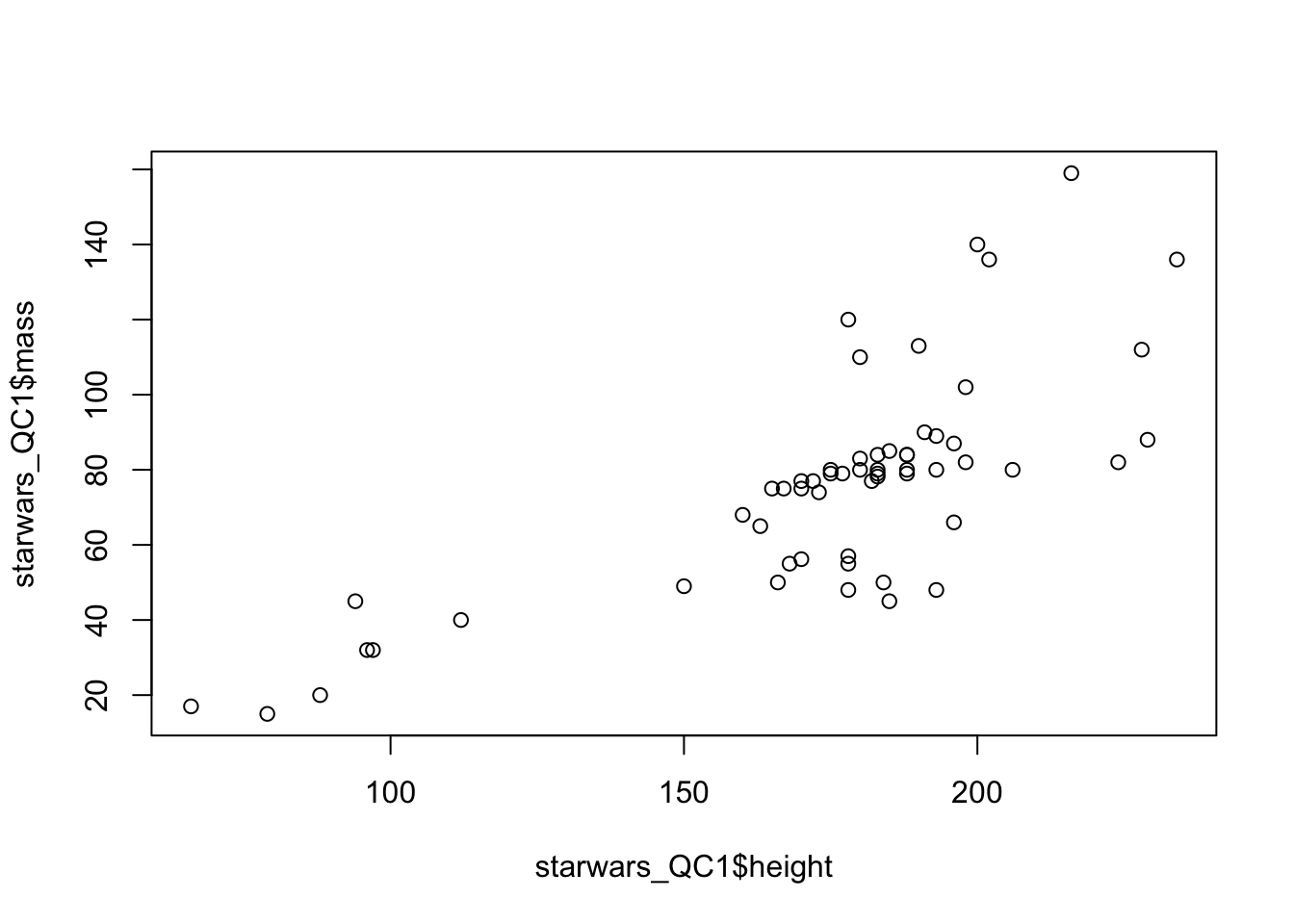

# Create scatter plot (plot)
plot(starwars_QC1$height,starwars_QC1$mass)

Version	Author	Date
159190a	tkcaccia	2024-09-16
5033c12	tkcaccia	2024-09-16

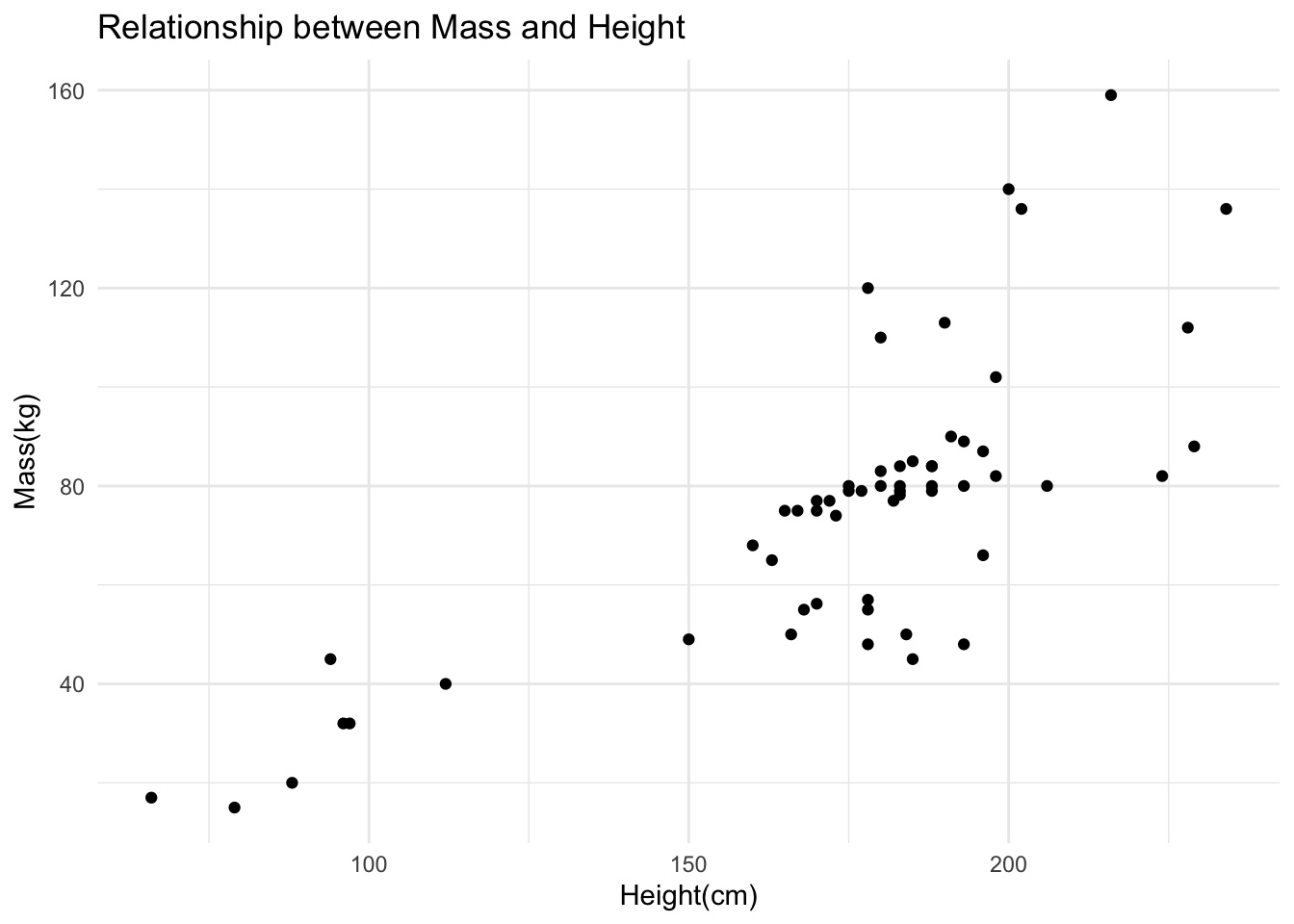

# Create scatter plot (ggplot)
ggplot(starwars_QC1, aes(x = height, y = mass)) +
  geom_point() +
  labs(title = "Relationship between Mass and Height", x = "Height(cm)", y = "Mass(kg)") +
  theme_minimal()

Version	Author	Date
159190a	tkcaccia	2024-09-16

Correlation coefficient.

The correlation between 2 variables is found with the cor() function.

Suppose we want to compute the correlation between height and mass in the starwars_QC1 dataset:

# Calculate correlation
correlation <- cor(starwars_QC1$height, starwars_QC1$mass, use = "complete.obs")
print(paste("Correlation coefficient between height and mass:", round(correlation, 2)))

[1] "Correlation coefficient between height and mass: 0.75"

The Pearson correlation is computed by default with the cor() function. If you want to compute the Spearman or Kendall's tau-b correlation, add the argument method = "spearman"

# Fit linear model
model <- lm(mass ~ height, data = starwars_QC1)

# Print model summary
summary(model)


Call:
lm(formula = mass ~ height, data = starwars_QC1)

Residuals:
    Min      1Q  Median      3Q     Max
-39.006  -7.804   0.508   4.007  57.901

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) -31.25047   12.81488  -2.439   0.0179 *
height        0.61273    0.07202   8.508 1.14e-11 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 19.49 on 56 degrees of freedom
Multiple R-squared:  0.5638,    Adjusted R-squared:  0.556
F-statistic: 72.38 on 1 and 56 DF,  p-value: 1.138e-11

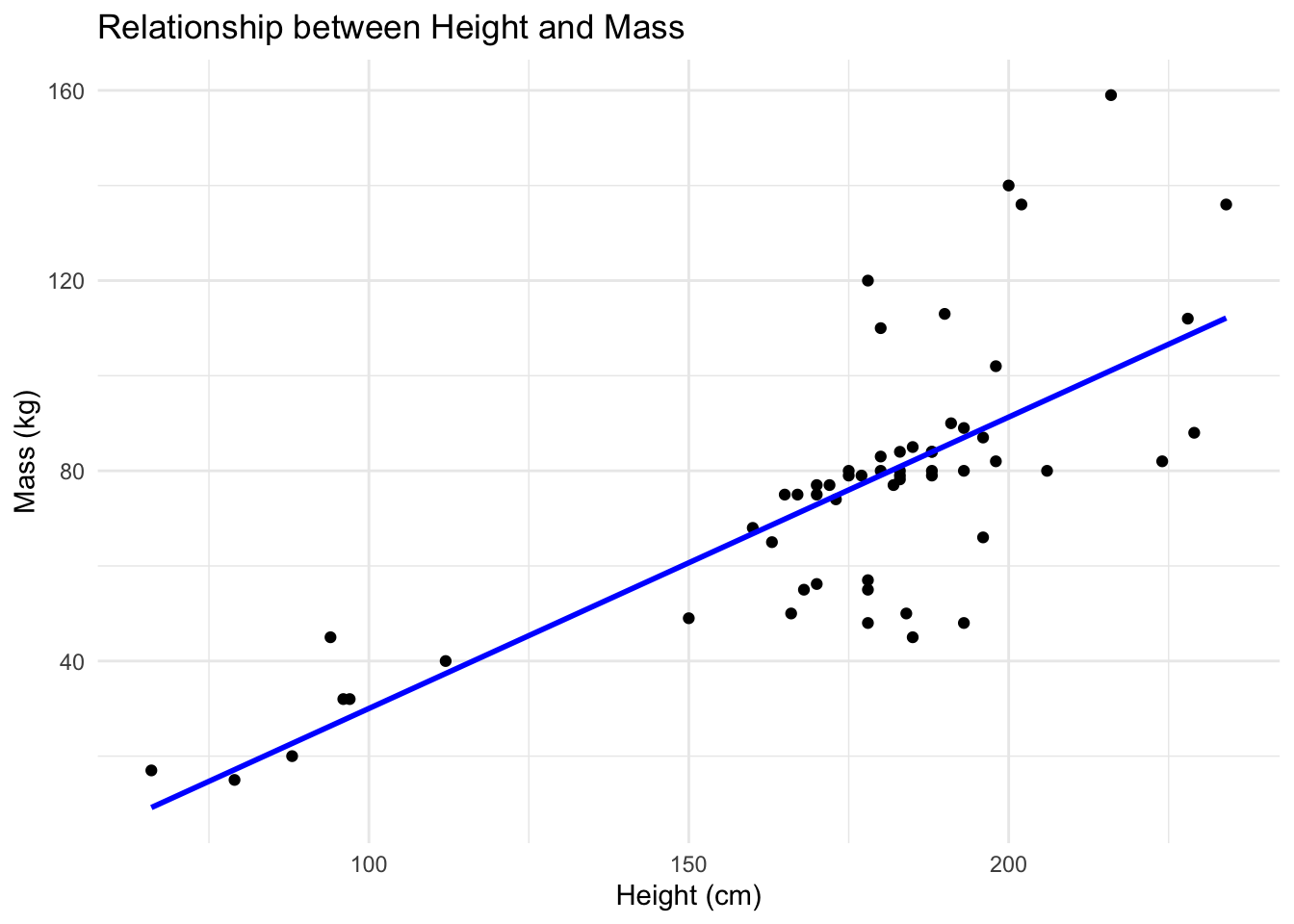

Plotting the regression line for the relationship

ggplot(starwars_QC1, aes(x = height, y = mass)) +
  geom_point() +
  geom_smooth(method = "lm", color = "blue", se = FALSE) +
  labs(title = "Relationship between Height and Mass",
       x = "Height (cm)",
       y = "Mass (kg)") +
  theme_minimal()

`geom_smooth()` using formula = 'y ~ x'

Version	Author	Date
5033c12	tkcaccia	2024-09-16

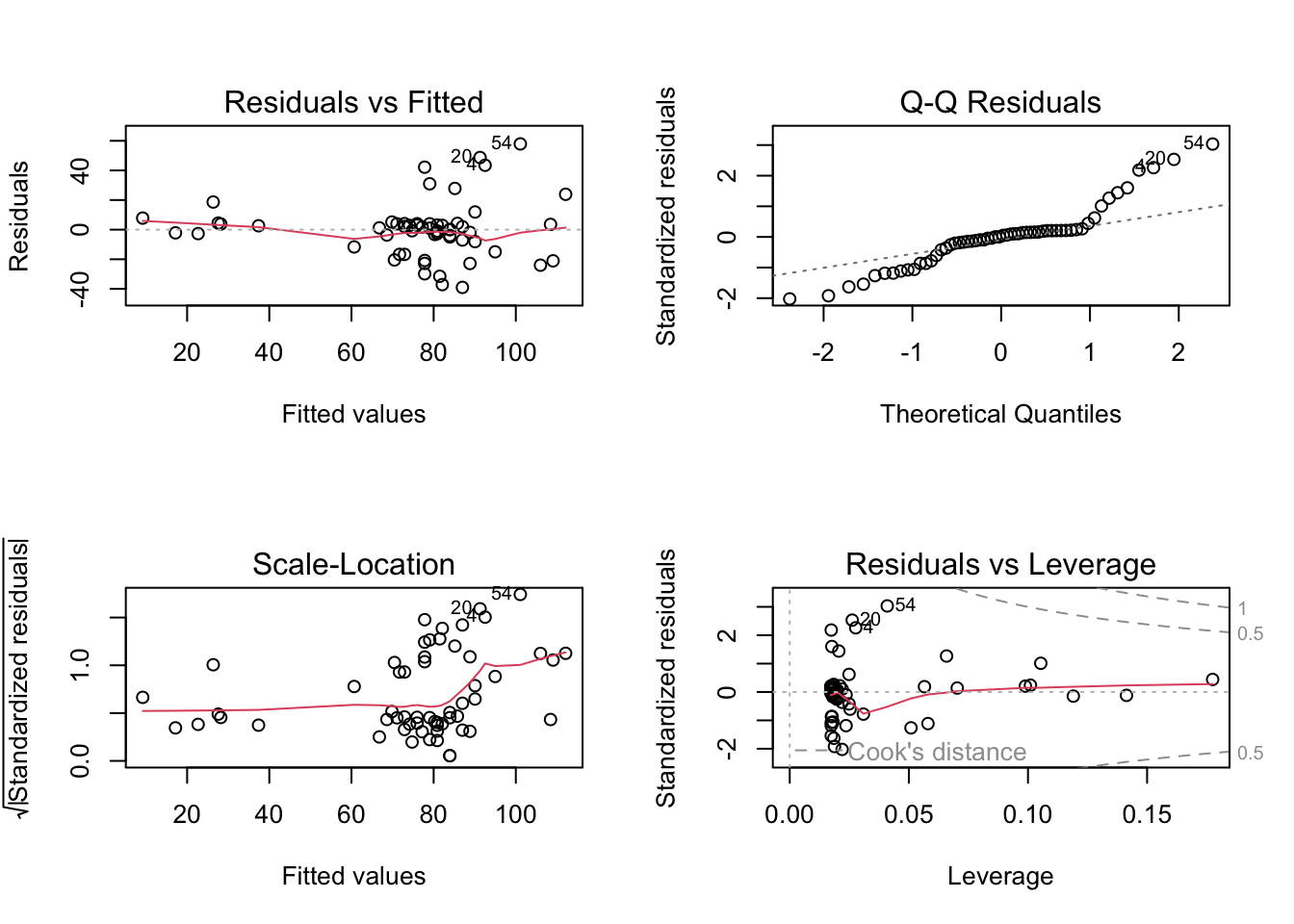

# Regression diagnostics
par(mfrow = c(2, 2))  # Set up plotting area for 4 plots
plot(model)

Version	Author	Date
5033c12	tkcaccia	2024-09-16

2. Box plots

A boxplot or a box-and-whisker plot is a standard method used to display the distribution of a dataset based on its five-number summary of data points; minimum, first quartile[Q1], median, third quartile[Q3], and maximum.

A box plot can tell you that your data is symmetrical, has outliers or skewed

data("iris")
head(iris)

  Sepal.Length Sepal.Width Petal.Length Petal.Width Species
1          5.1         3.5          1.4         0.2  setosa
2          4.9         3.0          1.4         0.2  setosa
3          4.7         3.2          1.3         0.2  setosa
4          4.6         3.1          1.5         0.2  setosa
5          5.0         3.6          1.4         0.2  setosa
6          5.4         3.9          1.7         0.4  setosa

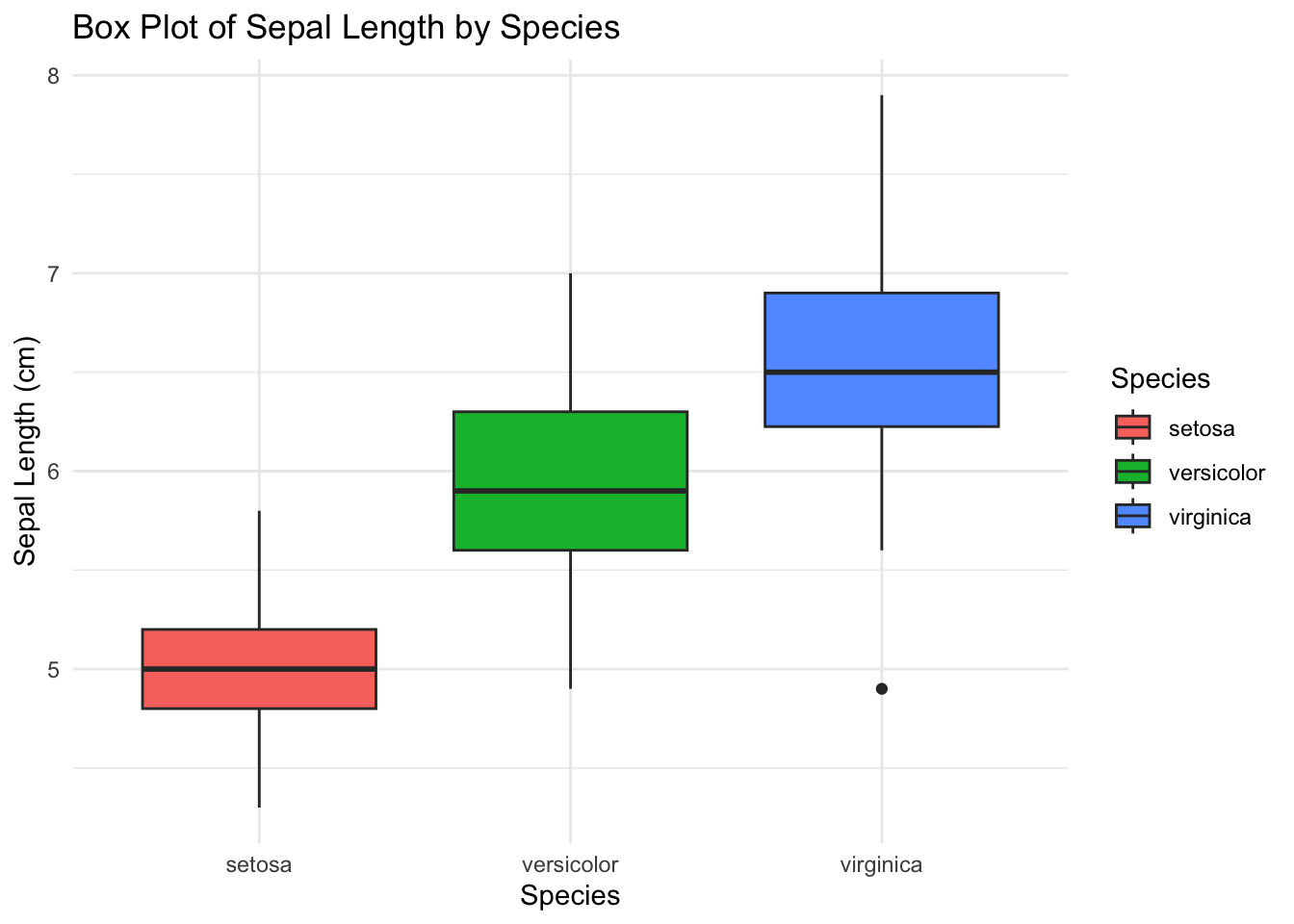

Create a box plot of Sepal Length by Species using the iris dataset

ggplot(iris, aes(x = Species, y = Sepal.Length, fill = Species)) +
  geom_boxplot() +
  labs(title = "Box Plot of Sepal Length by Species",
       x = "Species",
       y = "Sepal Length (cm)") +
  theme_minimal()

Version	Author	Date
5033c12	tkcaccia	2024-09-16

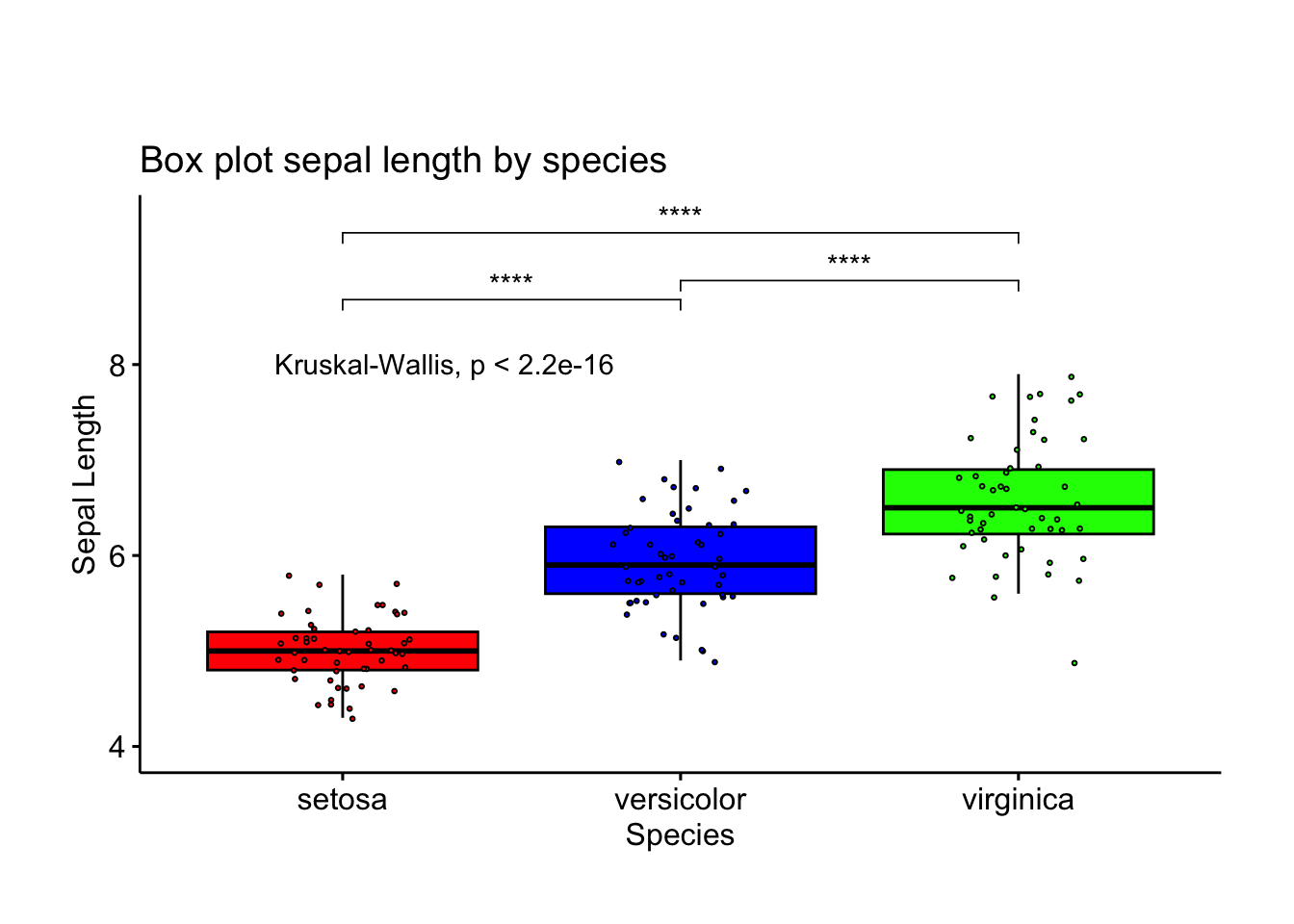

We can compare the species list

#install.packages("ggpubr")
library(ggpubr)
library(ggplot2)

# Define the colors for the boxplot
cols <- c("red", "blue", "green")


# Prepare the dataset (using Sepal.Length as the continuous variable)
df <- data.frame(Sepal.Length = iris$Sepal.Length, Species = iris$Species)

# Define comparisons for pairwise Wilcoxon test
my_comparisons <- list(c("setosa", "versicolor"), c("setosa", "virginica"), c("versicolor", "virginica"))

# Create the boxplot
ggboxplot(df, x = "Species", y = "Sepal.Length", width = 0.8, palette = cols,
          fill = "Species", add = "jitter", ylim = c(4, 9.5),  # Increase ylim to provide space for labels
          add.params = list(size = 0.5, jitter = 0.2, fill = "Species"),
          shape = 21) +
  labs(y= "Sepal Length", x = "Species", title = "Box plot sepal length by species") +
  stat_compare_means(method = "kruskal.test") +  # Overall comparison using Kruskal-Wallis test
  stat_compare_means(comparisons = my_comparisons,
                     method = "wilcox.test",
                     label = "p.signif",
                     label.y = c(8.5, 9.2, 8.7)) +  # Manually adjust the position of significance labels
  theme(legend.position = "none", plot.margin = unit(c(2, 1, 1, 1), "cm"))

Version	Author	Date
5033c12	tkcaccia	2024-09-16

3. Heatmaps

Heat maps or heatmaps allow us to simultaneously visualize clusters of samples and features.

There are multiple R packages and functions for drawing interactive and static heatmaps, including:

heatmap() [R base function, stats package]: Draws a simple heatmap
heatmap.2() [gplots R package]: Draws an enhanced heatmap compared to the R base function.
pheatmap() [pheatmap R package]: Draws pretty heatmaps and provides more control to change the appearance of heatmaps.
d3heatmap() [d3heatmap R package]: Draws an interactive/clickable heatmap
Heatmap() [ComplexHeatmap R/Bioconductor package]: Draws, annotates and arranges complex heatmaps (very useful for genomic data analysis)

We shall use the mtcars dataset.

#standardising the data to make variables comparable
df <- scale(mtcars)
# Default plot
heatmap(df, scale = "none")

Version	Author	Date
5033c12	tkcaccia	2024-09-16

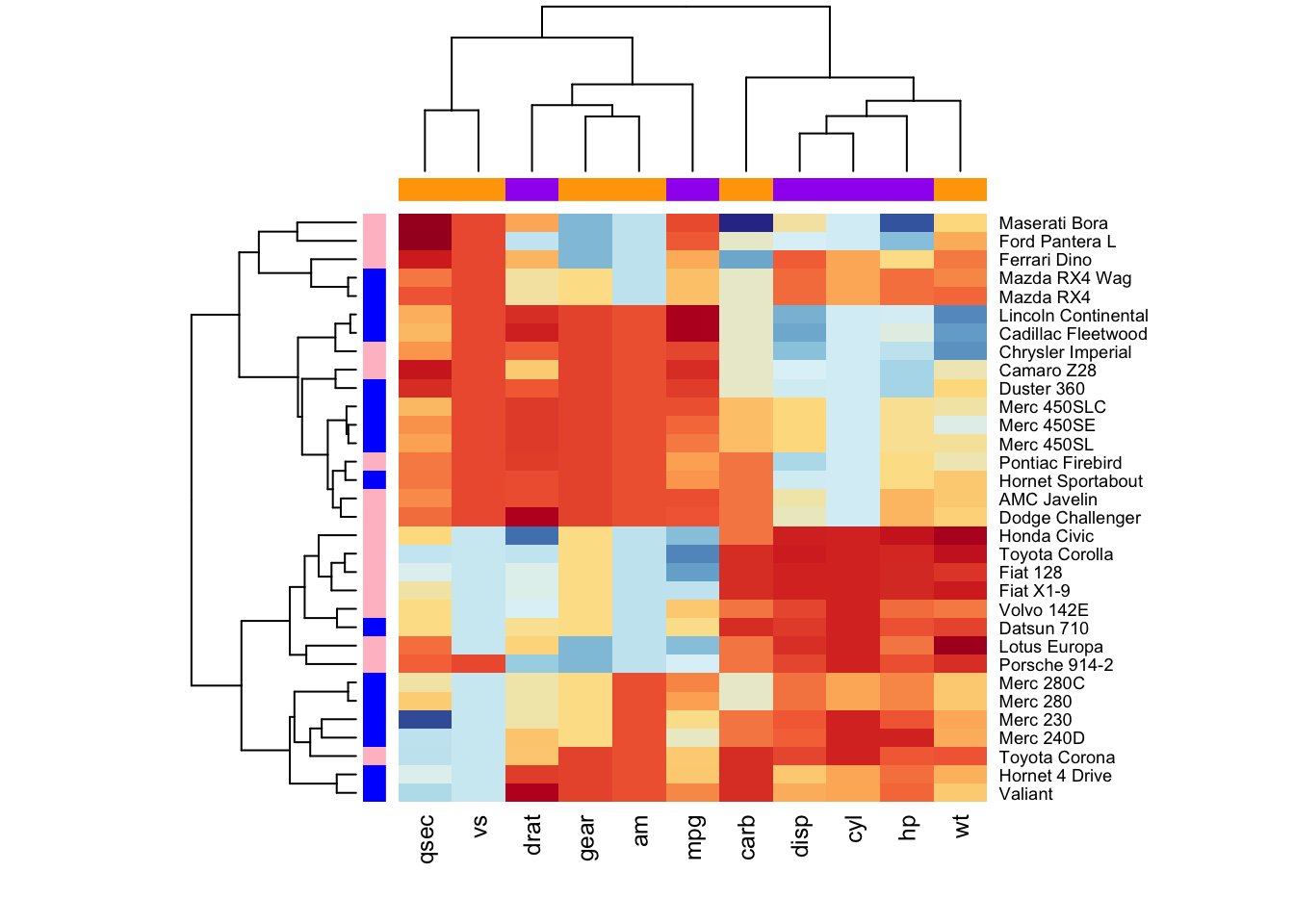

We can customise by using the RColorBrewer color palette to change the appearance. The arguments RowSideColors and ColSideColors are used to annotate rows and columns respectively.

library("RColorBrewer")
col <- colorRampPalette(brewer.pal(10, "RdYlBu"))(256)
heatmap(df, scale = "none", col =  col,
        RowSideColors = rep(c("blue", "pink"), each = 16),
        ColSideColors = c(rep("purple", 5), rep("orange", 6)))

Version	Author	Date
5033c12	tkcaccia	2024-09-16

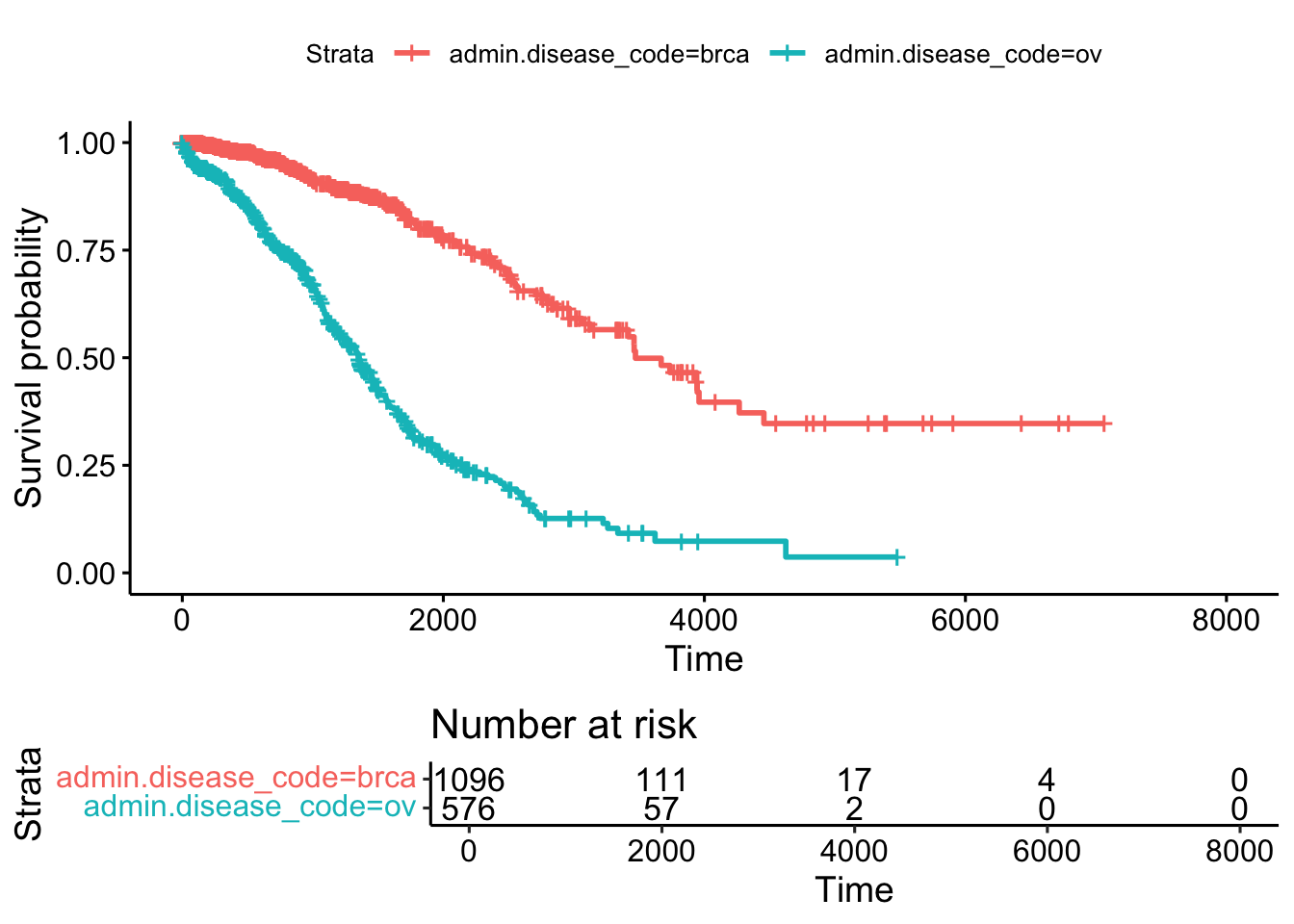

4. Survival plots

Survival analysis involves a set of statistical approaches used to investigate the time it takes for an event of interest to occur.

In cancer studies, survival analysis is used for patients survival time analyses with typical research questions like;

What is the impact of certain clinical characteristics on patient’s survival?
What is the probability that an individual survives after 3 years?
Are there differences in survival between groups of patients?

#install.packages('survminer')
BiocManager::install("RTCGA.clinical") # data for examples

'getOption("repos")' replaces Bioconductor standard repositories, see
'help("repositories", package = "BiocManager")' for details.
Replacement repositories:
    CRAN: https://cran.rstudio.com/

Bioconductor version 3.18 (BiocManager 1.30.23), R 4.3.3 (2024-02-29)

Old packages: 'abind', 'ade4', 'anytime', 'ape', 'arrow', 'BH', 'BiocManager',
  'bit', 'bit64', 'bitops', 'bookdown', 'boot', 'BRISC', 'broom',
  'broom.helpers', 'bslib', 'car', 'caret', 'caTools', 'class', 'classInt',
  'cli', 'clock', 'cluster', 'commonmark', 'coro', 'corrplot', 'cpp11',
  'credentials', 'curl', 'data.table', 'dbscan', 'dendextend', 'Deriv',
  'DescTools', 'digest', 'doBy', 'dotCall64', 'e1071', 'emayili', 'emmeans',
  'EnvStats', 'evaluate', 'evd', 'expm', 'fastDummies', 'fastmatch', 'fastPLS',
  'fields', 'fitdistrplus', 'FNN', 'fontawesome', 'foreign', 'fs',
  'future.apply', 'geojsonR', 'gert', 'ggiraph', 'ggrepel', 'ggstats', 'git2r',
  'gld', 'glue', 'golem', 'gower', 'gplots', 'graphlayouts', 'gtable',
  'hardhat', 'harmony', 'hdf5r', 'httr2', 'igraph', 'KernSmooth', 'knitr',
  'labelled', 'later', 'lava', 'leidenAlg', 'lme4', 'lmom', 'locfit', 'logger',
  'lpSolve', 'lubridate', 'magick', 'maps', 'matrixStats', 'microbenchmark',
  'minqa', 'mvtnorm', 'nlme', 'nnet', 'parabar', 'parallelly', 'patchwork',
  'phangorn', 'phytools', 'pillar', 'pkgbuild', 'pkgdown', 'poweRlaw',
  'processx', 'profvis', 'progressr', 'promises', 'ps', 'purrr', 'quantreg',
  'R.oo', 'R6', 'ragg', 'randomForest', 'RANN', 'raster', 'RcppParallel',
  'recipes', 'Rfast', 'rgl', 'rjson', 'rjtools', 'rpart', 'RSQLite',
  'rstudioapi', 'sessioninfo', 'Seurat', 'sf', 'sfsmisc', 'shiny',
  'shinyWidgets', 'Signac', 'sodium', 'sp', 'spam', 'spatial', 'spatstat.data',
  'spatstat.explore', 'spatstat.geom', 'spatstat.random', 'spatstat.univar',
  'spatstat.utils', 'spData', 'spdep', 'survival', 'survminer', 'systemfonts',
  'terra', 'testthat', 'textshaping', 'timeDate', 'tinytex', 'torch', 'unix',
  'usethis', 'waldo', 'wk', 'writexl', 'xfun', 'XML', 'zip'

library(survminer)
library(RTCGA.clinical)

Loading required package: RTCGA

Welcome to the RTCGA (version: 1.32.0). Read more about the project under https://rtcga.github.io/RTCGA/

survivalTCGA(BRCA.clinical, OV.clinical,
             extract.cols = "admin.disease_code") -> BRCAOV.survInfo

library(survival)


Attaching package: 'survival'

The following object is masked from 'package:survminer':

    myeloma

fit <- survfit(Surv(times, patient.vital_status) ~ admin.disease_code,
               data = BRCAOV.survInfo)

# Visualize with survminer
ggsurvplot(fit, data = BRCAOV.survInfo, risk.table = TRUE)

Version	Author	Date
5033c12	tkcaccia	2024-09-16

The simple plot above shows an estimate of survival probability depending on days from cancer diagnostics grouped by cancer types. Additionally an informative risk set table which shows the number of patients that were under observation in the specific period of time.

One can create a powerful informative survival plot with such specification of the parameters

ggsurvplot(
  fit,                     # survfit object with calculated statistics.
  data = BRCAOV.survInfo,  # data used to fit survival curves.
  risk.table = TRUE,       # show risk table.
  pval = TRUE,             # show p-value of log-rank test.
  conf.int = TRUE,         # show confidence intervals for point estimates of survival curves.
  xlim = c(0,2000),        # present narrower X axis, but not affect survival estimates.
  break.time.by = 500,     # break X axis in time intervals by 500.
  ggtheme = theme_minimal(), # customize plot and risk table with a theme.
  risk.table.y.text.col = T, # colour risk table text annotations.
  risk.table.y.text = FALSE # show bars instead of names in text annotations in legend of risk table
)

Version	Author	Date
5033c12	tkcaccia	2024-09-16

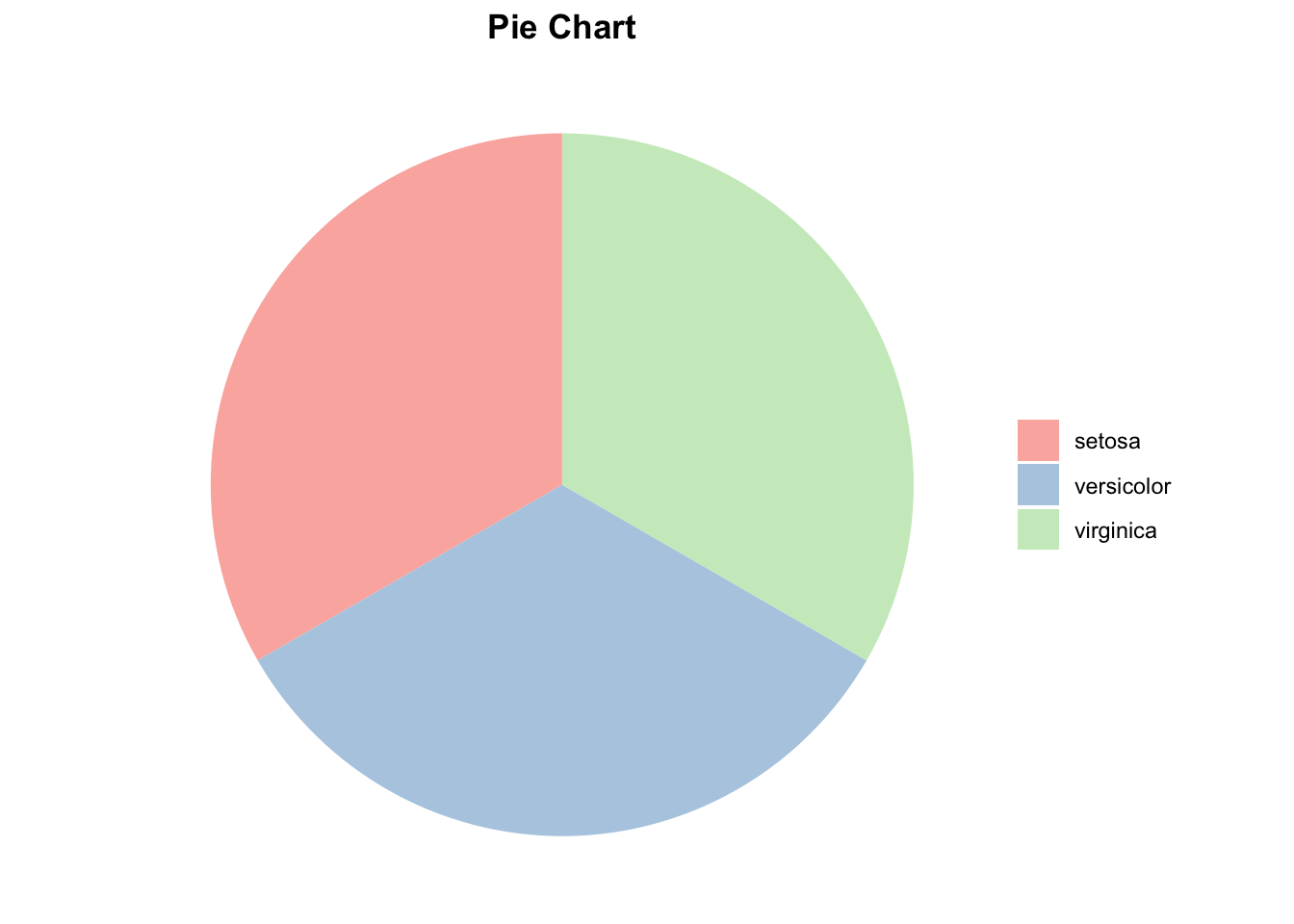

5. Pie Charts:

A pie chart represents the proportion of each species in the dataset.

# Load necessary libraries
library(dplyr)
library(ggplot2)

# Create a data frame with counts of Species
x <- as.data.frame(table(iris$Species))

# Create a pie chart using ggplot2
ggplot(x, aes(x = "", y = Freq, fill = Var1)) +
  geom_bar(stat = "identity", width = 1) +
  coord_polar(theta = "y") +
  labs(title = "Pie Chart") +
  theme_void() +
  scale_fill_brewer(palette = "Pastel1") +
  theme(legend.title = element_blank(),
        plot.title = element_text(hjust = 0.5, face = "bold"))

Version	Author	Date
5033c12	tkcaccia	2024-09-16

sessionInfo()

R version 4.3.3 (2024-02-29)
Platform: aarch64-apple-darwin20 (64-bit)
Running under: macOS Sonoma 14.5

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.11.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Africa/Johannesburg
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] survival_3.7-0               RTCGA.clinical_20151101.32.0
[3] RTCGA_1.32.0                 survminer_0.4.9
[5] RColorBrewer_1.1-3           ggpubr_0.6.0
[7] dplyr_1.1.4                  ggplot2_3.5.1
[9] workflowr_1.7.1

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.1    viridisLite_0.4.2   farver_2.1.2
 [4] viridis_0.6.5       bitops_1.0-8        fastmap_1.2.0
 [7] RCurl_1.98-1.16     promises_1.3.0      XML_3.99-0.17
[10] digest_0.6.36       lifecycle_1.0.4     processx_3.8.4
[13] magrittr_2.0.3      compiler_4.3.3      rlang_1.1.5
[16] sass_0.4.9          tools_4.3.3         utf8_1.2.4
[19] yaml_2.3.10         data.table_1.15.4   knitr_1.48
[22] ggsignif_0.6.4      labeling_0.4.3      xml2_1.3.6
[25] abind_1.4-5         withr_3.0.2         purrr_1.0.2
[28] grid_4.3.3          fansi_1.0.6         git2r_0.33.0
[31] xtable_1.8-4        colorspace_2.1-1    scales_1.3.0
[34] cli_3.6.3           rmarkdown_2.29      generics_0.1.3
[37] rstudioapi_0.16.0   km.ci_0.5-6         httr_1.4.7
[40] commonmark_1.9.1    cachem_1.1.0        stringr_1.5.1
[43] splines_4.3.3       ggthemes_5.1.0      rvest_1.0.4
[46] assertthat_0.2.1    BiocManager_1.30.23 survMisc_0.5.6
[49] vctrs_0.6.5         Matrix_1.6-5        jsonlite_1.8.9
[52] carData_3.0-5       car_3.1-2           callr_3.7.6
[55] rstatix_0.7.2       tidyr_1.3.1         jquerylib_0.1.4
[58] glue_1.7.0          ps_1.7.7            ggtext_0.1.2
[61] stringi_1.8.4       gtable_0.3.5        later_1.3.2
[64] munsell_0.5.1       tibble_3.2.1        pillar_1.9.0
[67] htmltools_0.5.8.1   R6_2.5.1            KMsurv_0.1-5
[70] rprojroot_2.0.4     evaluate_0.24.0     lattice_0.22-6
[73] markdown_1.13       highr_0.11          backports_1.5.0
[76] gridtext_0.1.5      broom_1.0.6         httpuv_1.6.15
[79] bslib_0.8.0         Rcpp_1.0.14         gridExtra_2.3
[82] nlme_3.1-165        mgcv_1.9-1          whisker_0.4.1
[85] xfun_0.46           fs_1.6.4            zoo_1.8-12
[88] getPass_0.2-4       pkgconfig_2.0.3

Visualisation

Stefano Cacciatore

February 18, 2025

Visualisation

1. Scatter Plots

Correlation coefficient.

2. Box plots

3. Heatmaps

4. Survival plots

5. Pie Charts:
